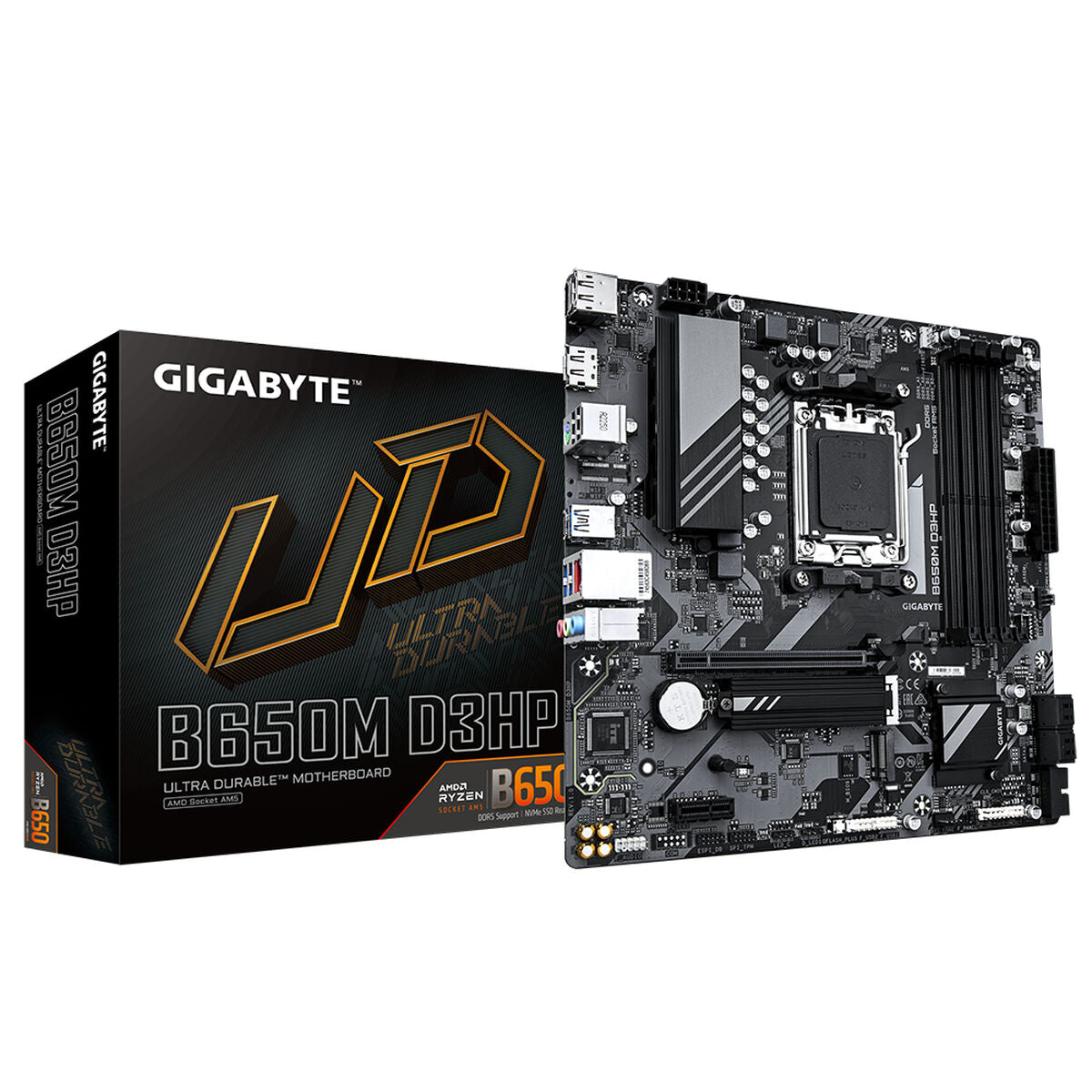

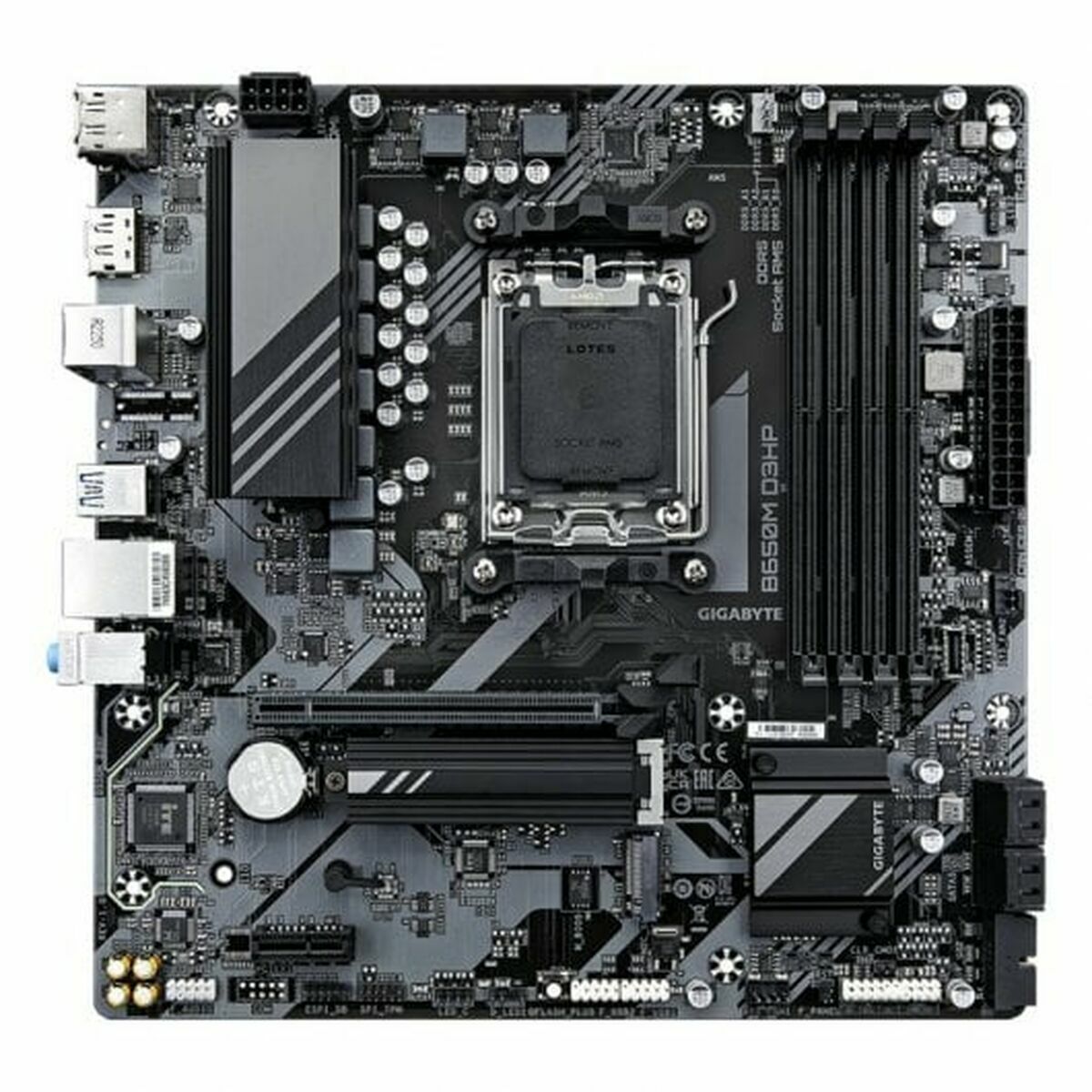

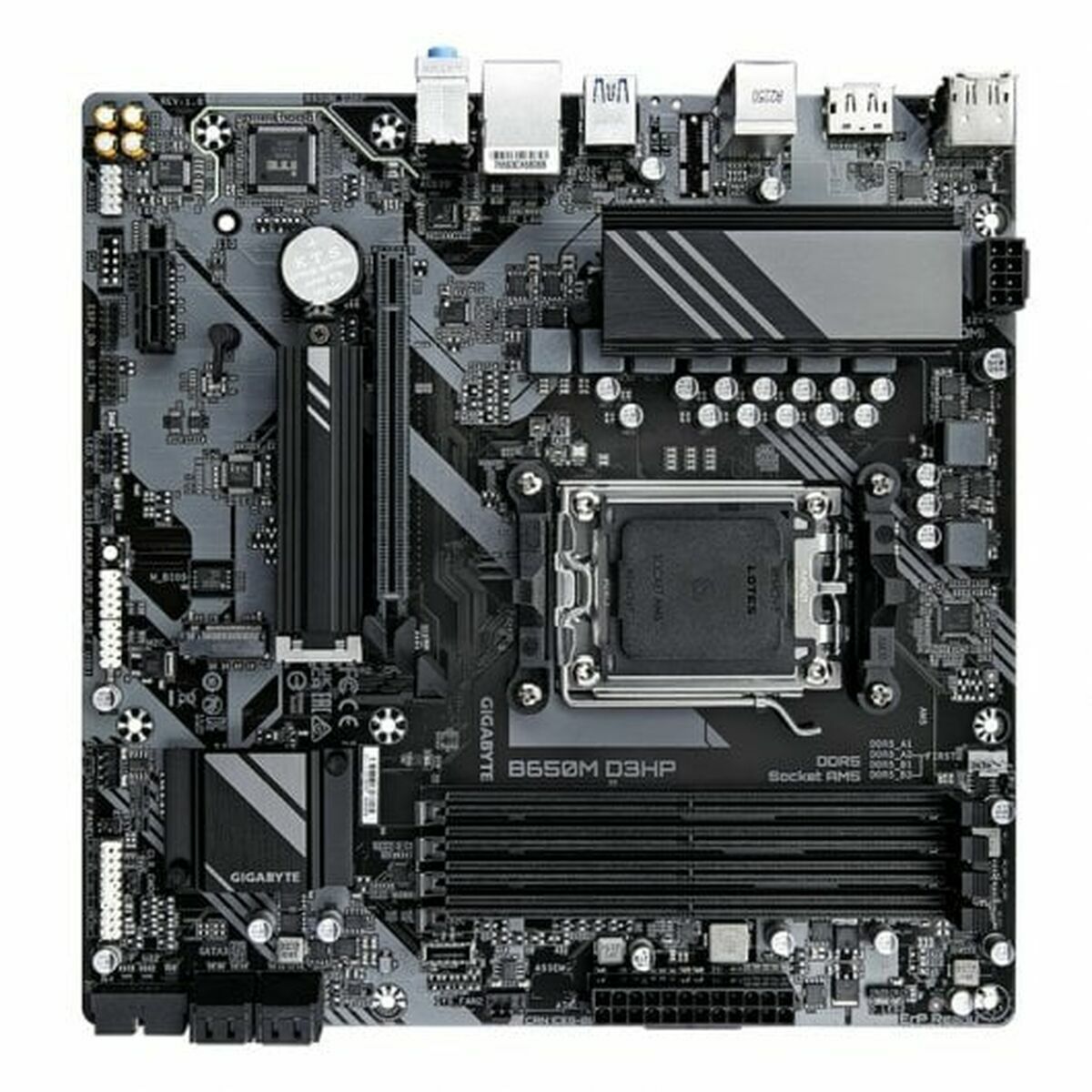

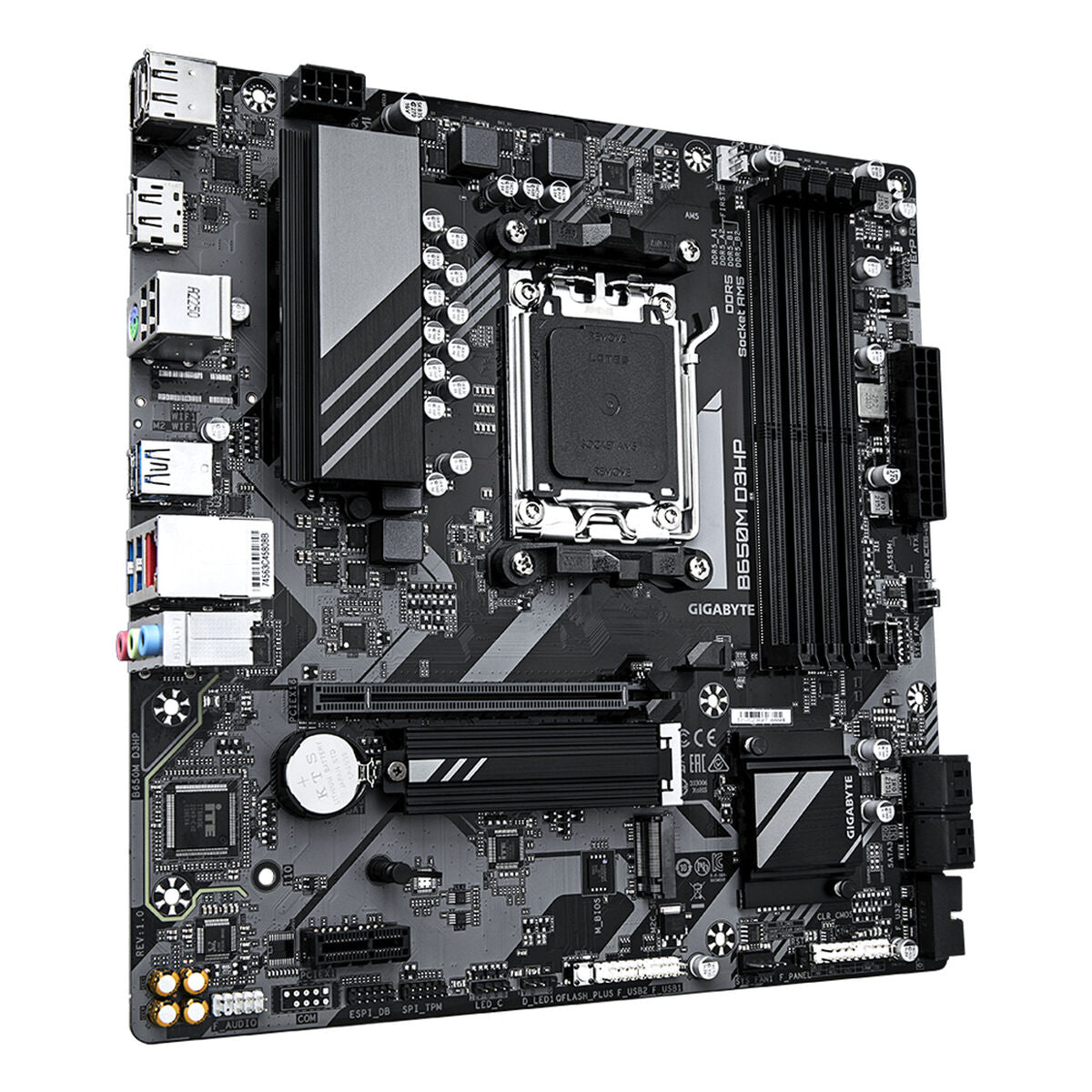

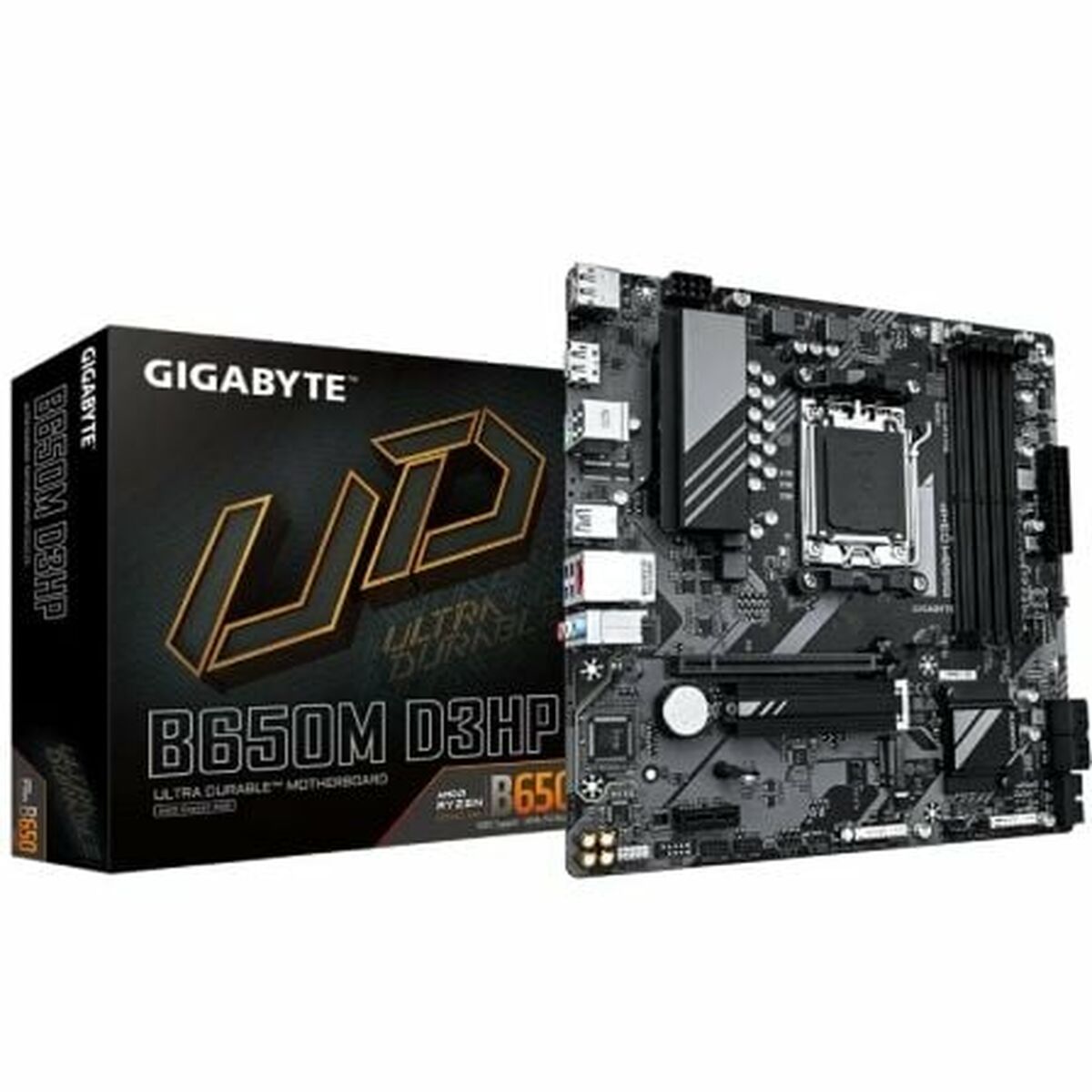

Motherboard Gigabyte B650M D3HP AM5 ATX AMD B650 AMD AM5

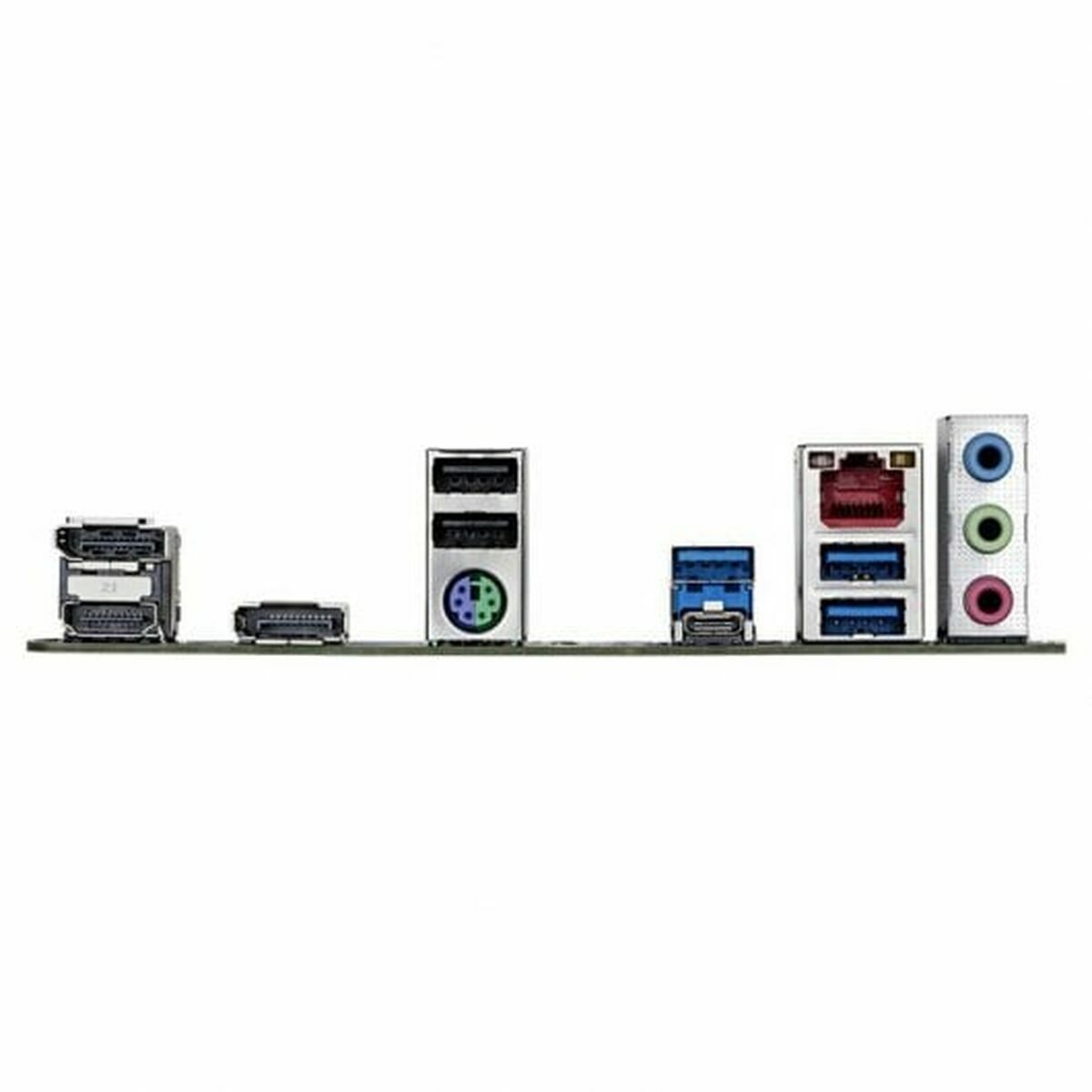

The motherboard Gigabyte B650M D3HP AM5 is designed for desktop PCs with latest-generation AMD processors, integrating the AMD B650 chipset and an AMD AM5 socket compatible with DDR5 memory to offer a modern platform ready for future upgrades. It features a MicroATX form factor (244 x 244 mm), ideal for compact cases without sacrificing expansion, with a design in brown and black tones and reinforced PCB and plastic components. It supports memory modules in DDR5 DIMM slots with up to 4 banks, allowing flexible configurations for advanced use. For storage connectivity, it includes 2 M.2 slots for high-performance SSDs and 4 SATA ports for additional HDD or SSD drives, providing a balanced mix of speed and capacity. For integrated graphics on compatible CPUs, it offers HDMI 2.1 x 1 and DisplayPort x 2 video outputs, capable of handling resolutions up to 4096 x 2160 px, suitable for 4K monitors. Rear connectivity includes USB 3.2, USB-C 3.2 x 1, USB 2.0, a combined USB-A – USB-C port, plus additional options for the front panel, making it easy to connect modern peripherals and external devices. For networking, it integrates Gigabit Ethernet (RJ45 x 1) and Ethernet LAN specifications, and the model offers an optional WiFi configuration, allowing stable connections for home and professional use. It also provides a PS/2 port x 1 for legacy keyboard or mouse and analog audio connectors with 3.5 mm jack x 3 and 7.1 sound, suitable for surround speaker systems or quality headsets. For expansion, it offers PCI Express slots for graphics cards and other devices, with PCIe 4.0 support in the indicated model and broad compatibility with PCI Express 3.0 standards for additional cards. The UEFI BIOS enables advanced yet accessible configuration, with clear options to manage CPU, memory, storage and system cooling parameters. Overall, this Gigabyte B650M D3HP AM5 MicroATX motherboard with AMD B650 chipset and DDR5 support provides a solid, up-to-date and balanced base for building a versatile desktop PC prepared for demanding tasks.

• Type:
  • Motherboard
  • PCI Express 3.0
  • ATX
  • UEFI
• Connections:
  • Ethernet LAN
  • PS/2
  • SATA
  • HDMI 2.1
  • M.2
  • HDMI
  • USB-C
  • USB 2.0
  • DisplayPort
  • USB 3.2
  • HDMI x 1
  • DisplayPort x 2
  • 2 x USB 2.0
  • Microphone
  • SATA x 4
  • PS/2 x 1
  • Jack 3.5 mm x 3
  • M.2 x 2
  • HDMI 2.1 x 1
  • USB-C 3.2 x 1
  • DIMM
  • USB-A - USB-C
  • USB 3.2 x 1
  • RJ45 x 1
• Depth: 244 mm
• Width: 244 mm
• Colour:
  • Brown
  • Black
• Batteries included: Yes
• Power supply: ATX
• Form factor:
  • mATX
  • MicroATX
• Chipset:
  • AMD AM5
  • AMD B650
• Approx. dimensions: 27 x 6 x 27 cm
• Material: Plastic
• Model: Serie 1
• Internal Memory: 16 GB
• Interface: Gigabit Ethernet
• Memory: 256 MB
• Number of memory slots: 4
• Speakers: 7.1
• Compatible:
  • HDD/SSD
  • PC
• Connectivity: Ethernet LAN
• Not included: WiFi
• Includes: SATA
• Socket: AMD AM5
• Memory Type: DDR5
• Resolution (px): 4096 x 2160 px
• Supported screens: x 3
