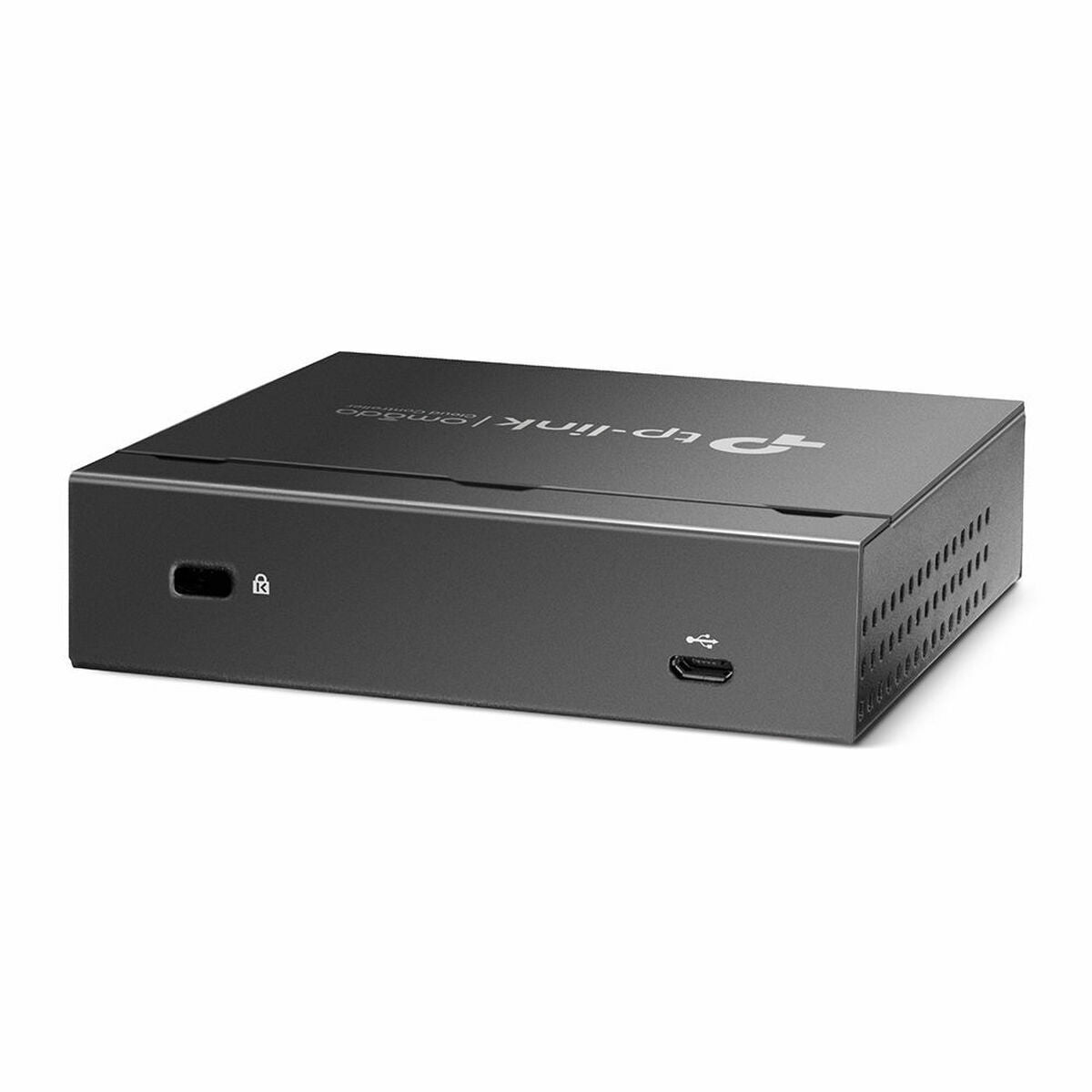

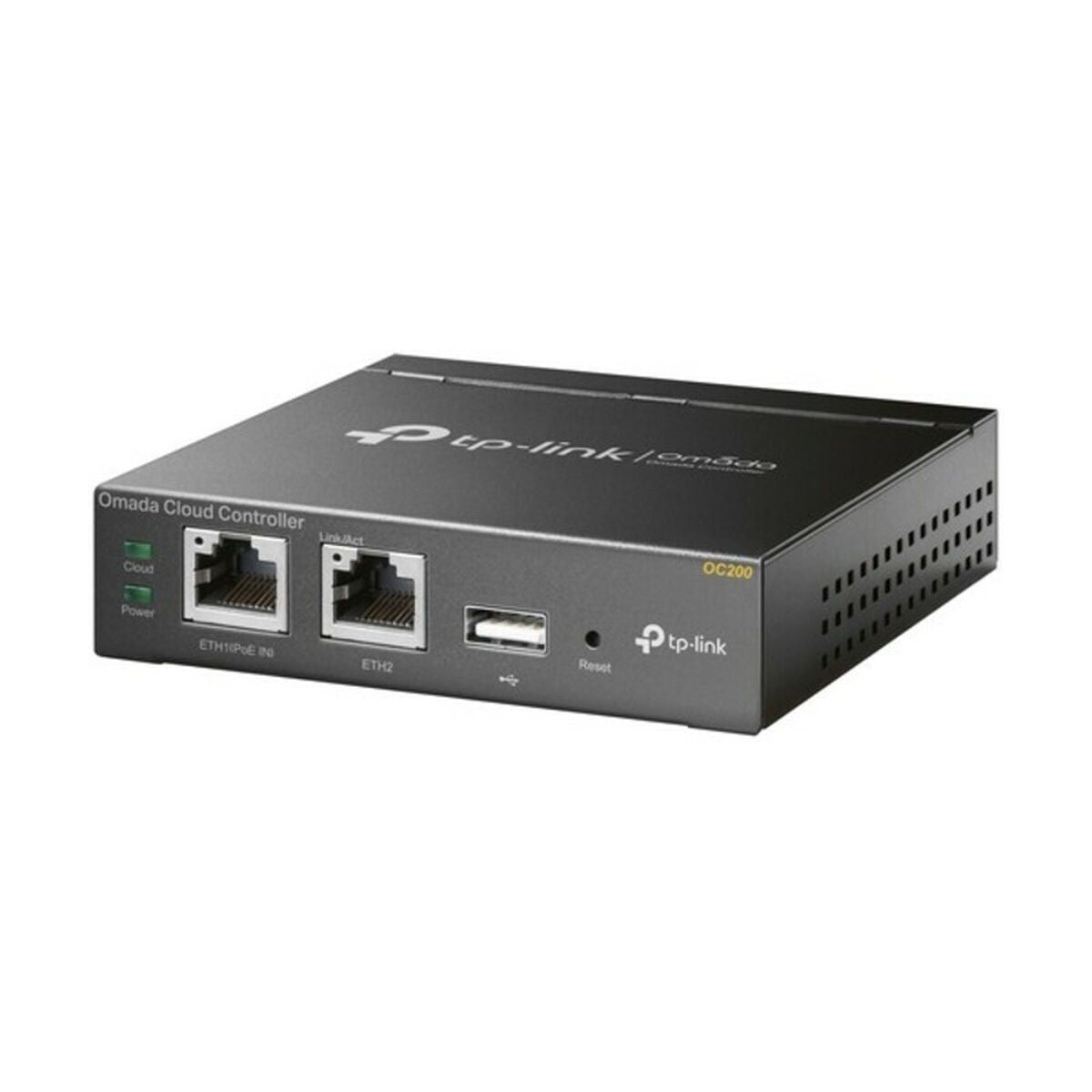

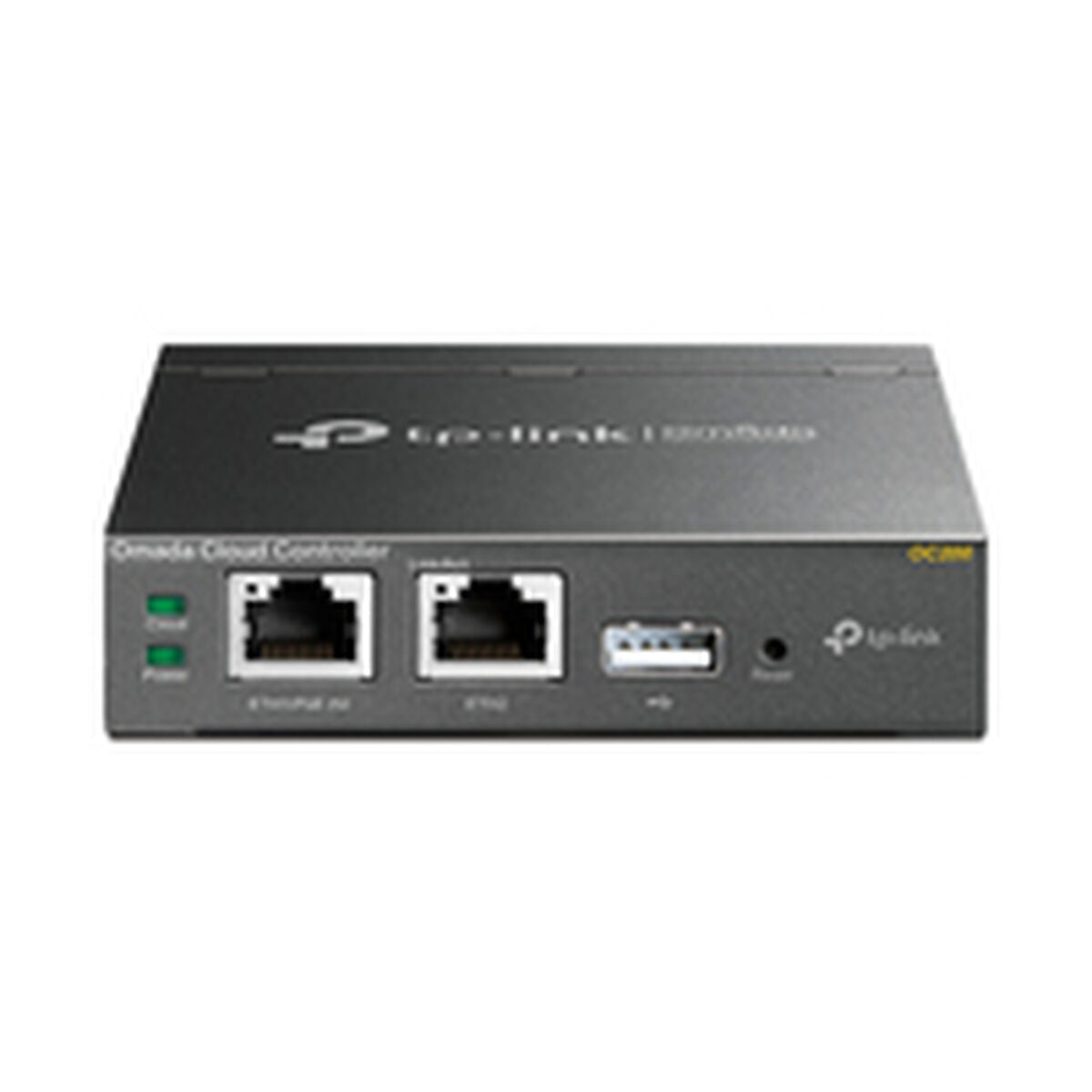

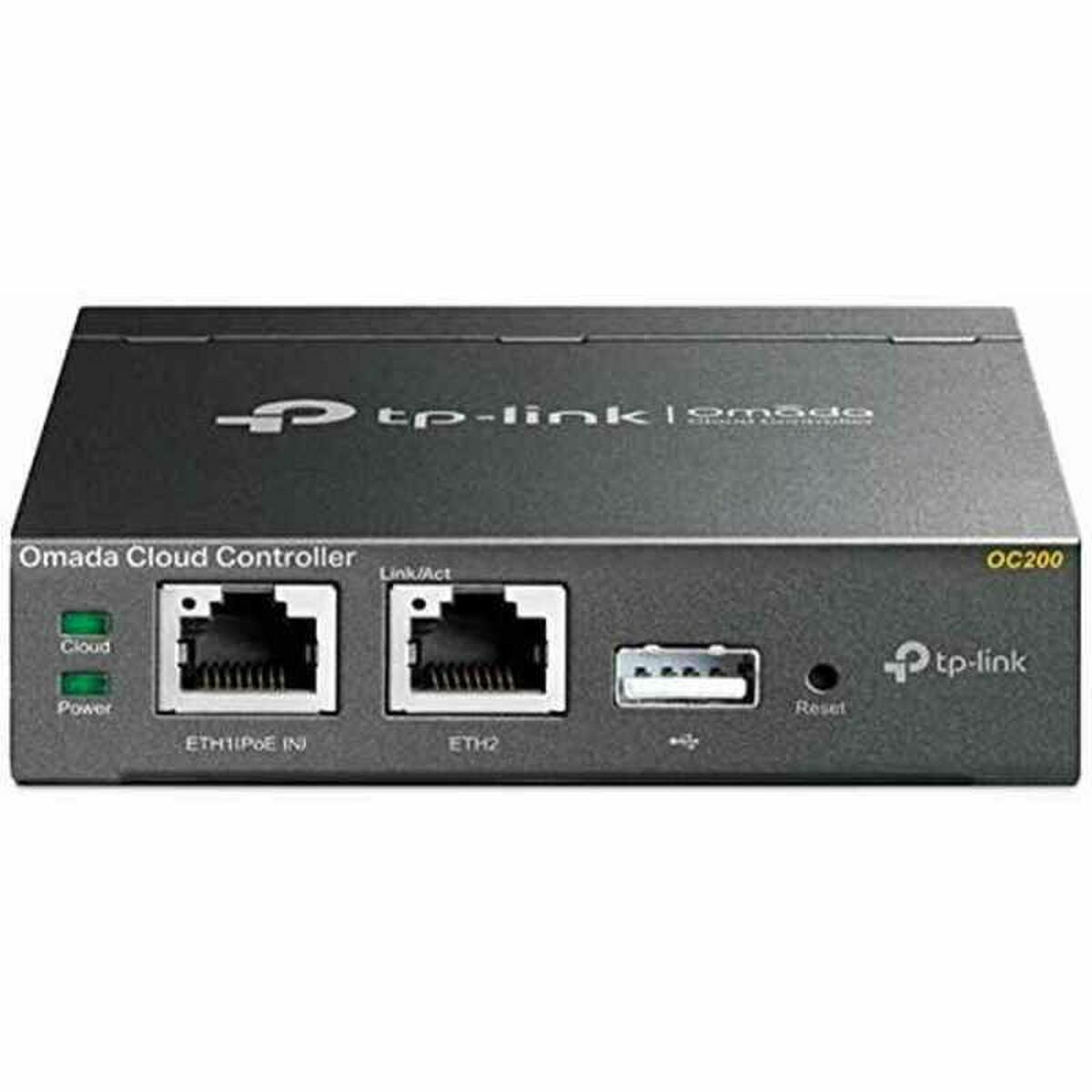

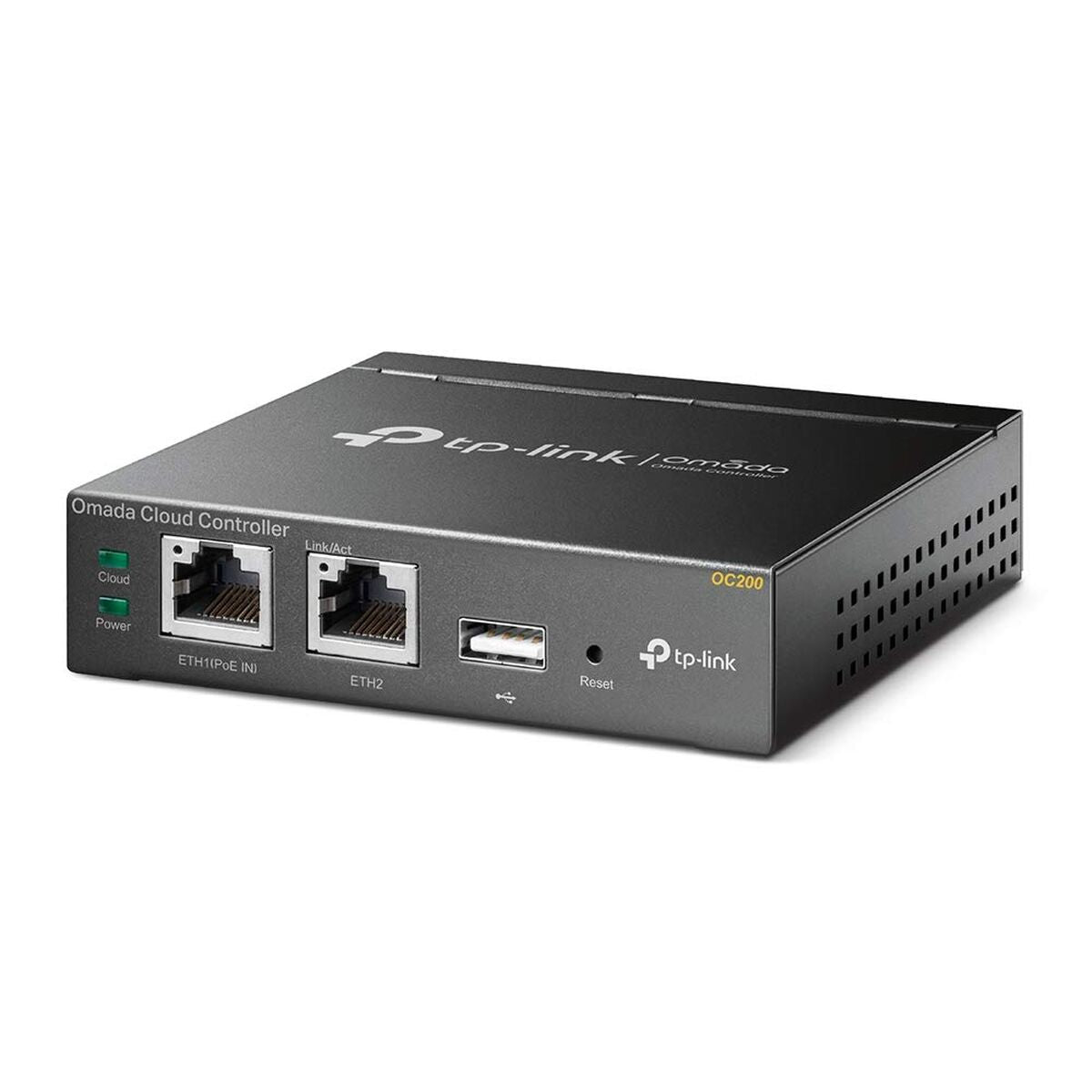

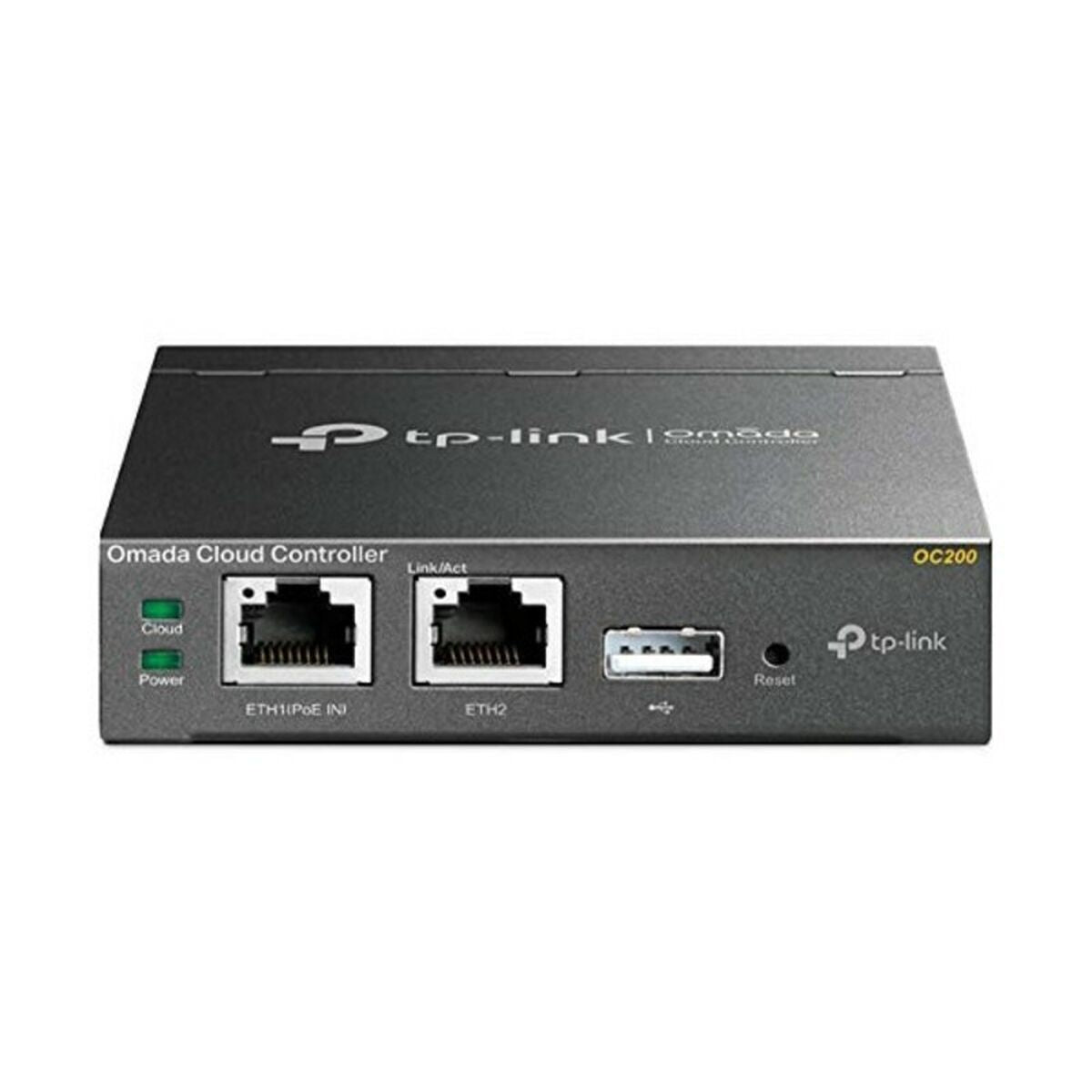

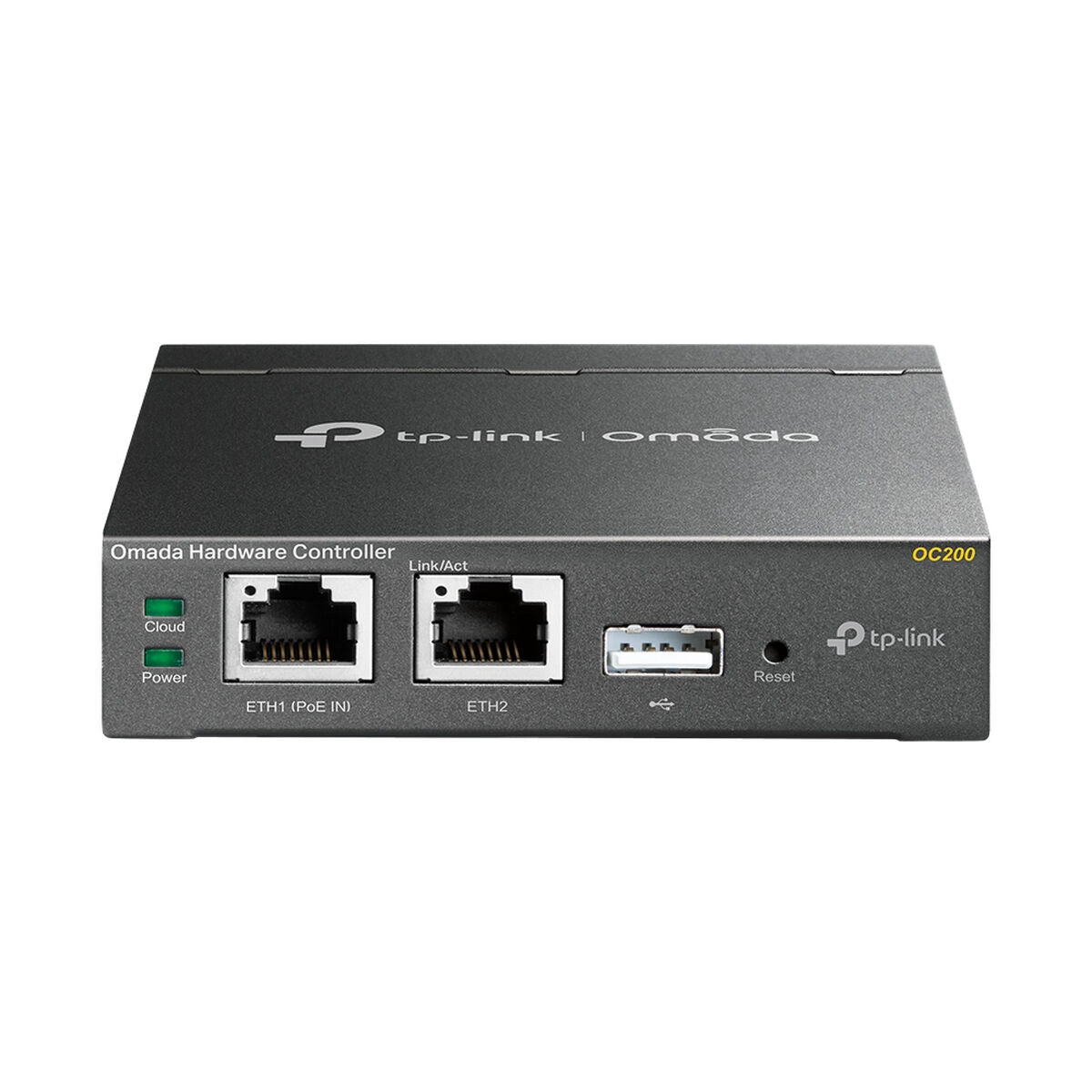

Controller TP-Link OC200 Black

The OC200 from TP-Link is a professional controller designed for centralized and efficient management of wireless networks via the Omada platform. This device features a compact black design and a robust internal architecture with 1 GB DDR3 SDRAM memory, ensuring smooth management of multiple access points and connected devices. It is equipped with a 1200 MHz processor that enables stable handling of large data traffic volumes, reaching transfer speeds of up to 10 Gbit/s through its Ethernet LAN port, ideal for business environments or high user density scenarios. It supports IEEE 802.3af and IEEE 802.3at network standards, allowing easy power supply via PoE (Power over Ethernet), and features advanced security algorithms such as SSID, WEP, WPA, WPA-PSK, WPA2, and WPA2-PSK to protect the network against unauthorized access. The LED indicator provides quick visual monitoring of operational status, and the included installation guide makes setup straightforward, even in complex technical environments. It also offers a USB 2.0 port for storage tasks or firmware updates, enhancing the functionality and flexibility of the management system. The TP-Link OC200 is an ideal tool for corporate, educational, or commercial networks requiring centralized supervision, high capacity, and advanced security, integrating seamlessly into demanding infrastructures with simple and effective setup.

• Connectivity: Wi-Fi
• AC input voltage: 5 V
• Approx. dimensions: 10 x 9,8 x 2,5 cm
• Type:
  • DDR3
  • Access point
  • Wi-Fi antenna
• Certificate:
  • RoHS
  • CE
  • FCC
• Requirements:
  • Microsoft® Windows®10, 8, 7, Vista™, XP
  • macOS
  • Linux
  • NetWare®
• Width:
  • 10 cm
  • 100 mm
• Includes:
  • LAN (RJ-45)
  • Ethernet LAN Cable
  • RJ45 Cable
• Speed:
  • 1200 Mbit/s
  • 10 Gbit/s
• Flash Memory: 4000 MB
• Height:
  • 2,5 cm
  • 25 mm
• Power supply: Electric Network
• Type of plug: Plug EU
• Product with plug: Yes
• USB 2.0: 1
• Frequency: 2,4 GHz - 5 GHz
• Data transfer: 100 Mbit/s
• Internal Memory:
  • 1 GB
  • DDR3
• Connections:
  • 2
  • Ethernet LAN 10/100
  • USB 2.0
  • PoE x 1
• Approx. diameter: Ø 10 cm
• Energy consumption: 5 W
• Colour: Black
• Characteristics:
  • LED indicator
  • Installation guide included
  • Restore button
• Memory Type: DDR3 SDRAM
• Voltage: 5 V
• Power: 5 W
• Approx. weight: 400 gr
• Control: App
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Nuclei: 1 core

Dedicated In Network Centralized Management The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business. Free Cloud Management – Anywhere, Anytime Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go. Industry Leading Hardware Design Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network. Guest Network with Facebook Wi-Fi and SMS Login Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business. Even More Convenient with Omada App Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

• MAC address filtering: Y
• Security algorithms: SSID,WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
• VLAN support: Y
• Ethernet LAN data rates: 10,100 Mbit/s
• Networking standards: IEEE 802.3af,IEEE 802.3at
• Web-based management: Y
• Quality of Service (QoS) support: Y
• Reset button: Y
• USB 2.0 ports quantity: 1
• Ethernet LAN (RJ-45) ports: 2
• Width: 99.8 mm
• Depth: 98 mm
• Height: 25 mm
• Package width: 135 mm
• Package depth: 128 mm
• Package height: 70 mm
• Power consumption (typical): 5 W
• Power over Ethernet (PoE): Y
• DC input voltage: 5 V
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Built-in processor: Y
• Management platform: L3
• Number of processors installed: 1
• Processor frequency: 1000 MHz
• LED indicators: Y
• Certification: CE, FCC, RoHS
• Compatible operating systems: Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux
• Internal memory: 1024 MB
• Flash memory: 4000 MB
• Internal memory type: DDR3
• Cables included: LAN (RJ-45)
• Quick installation guide: Y
• Control display unit: N
