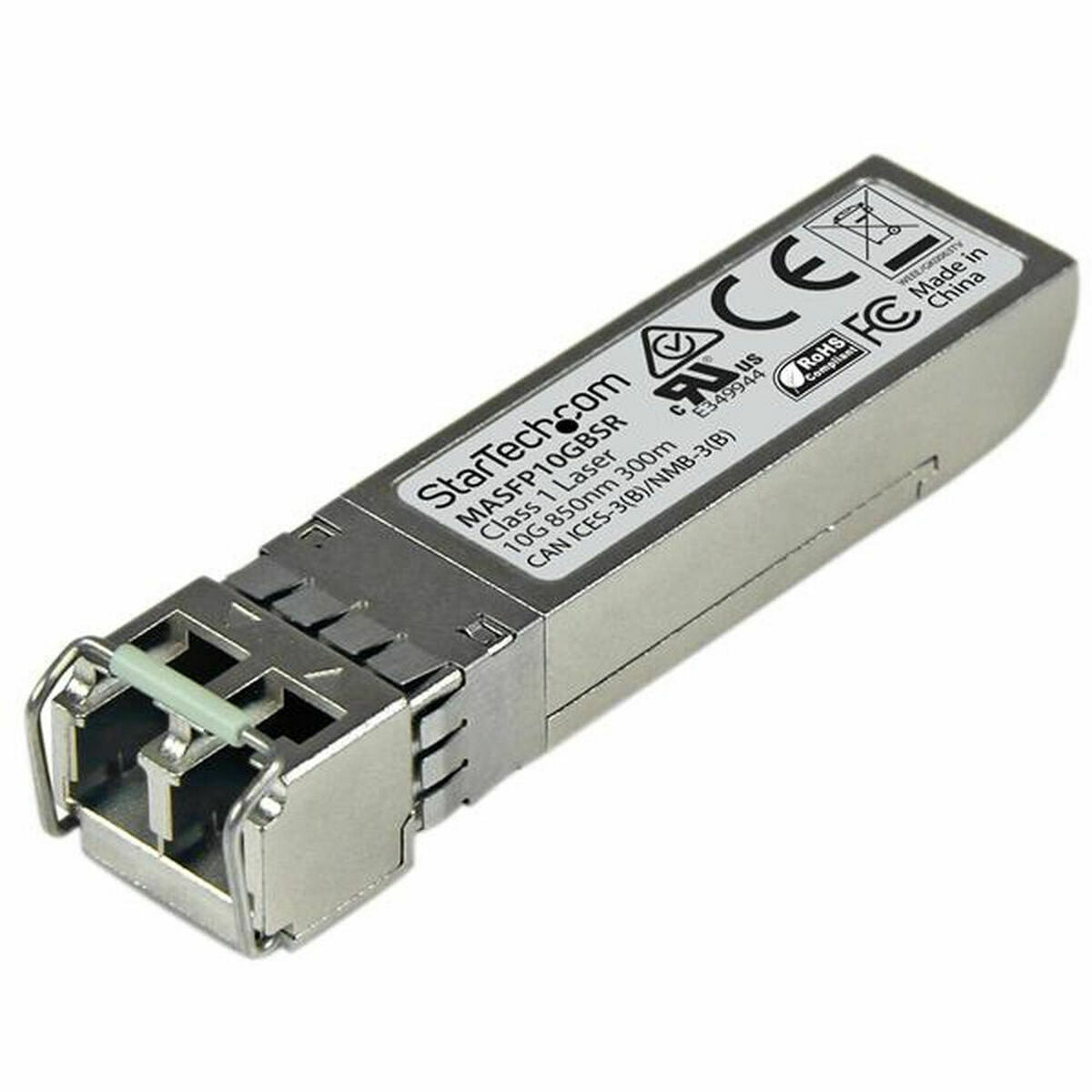

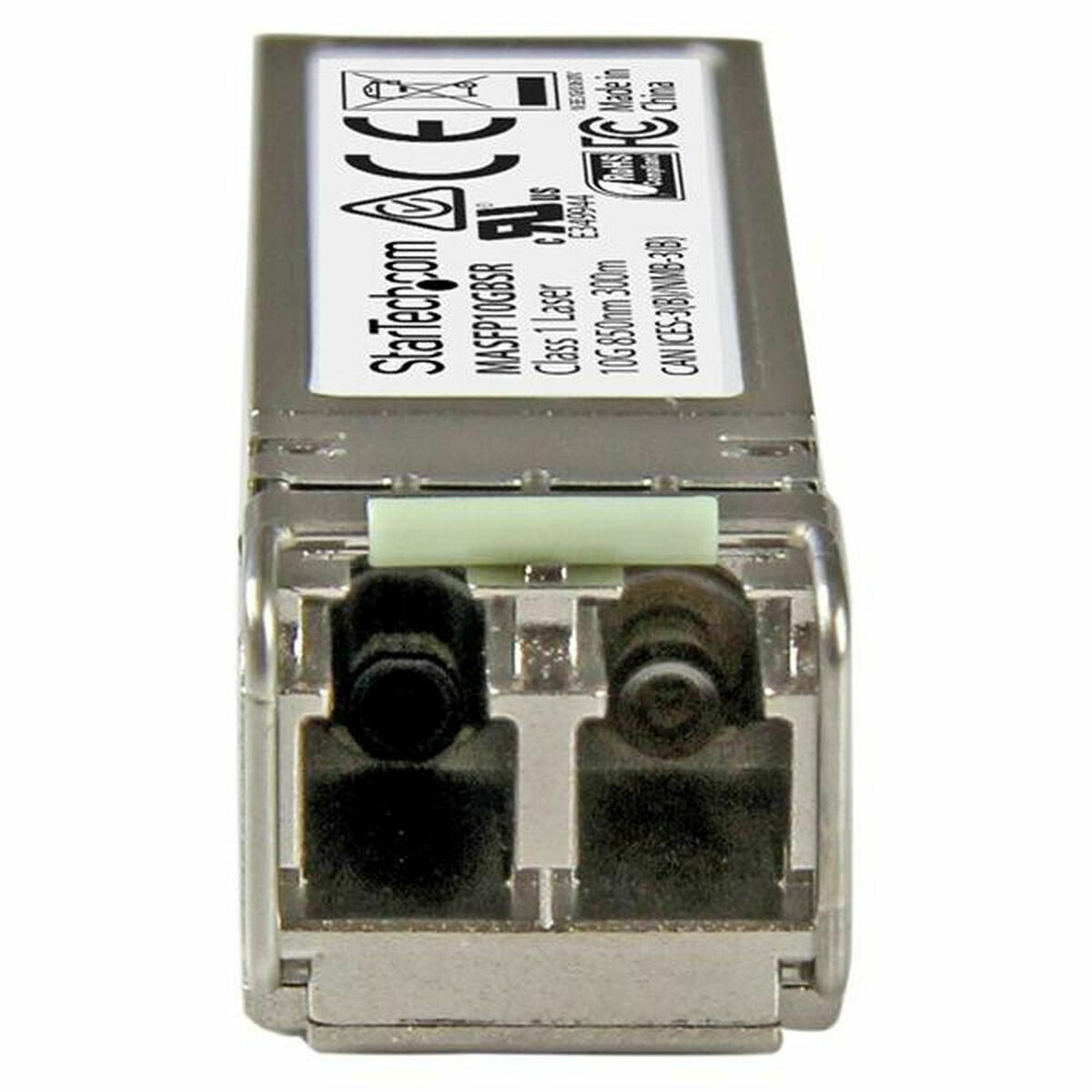

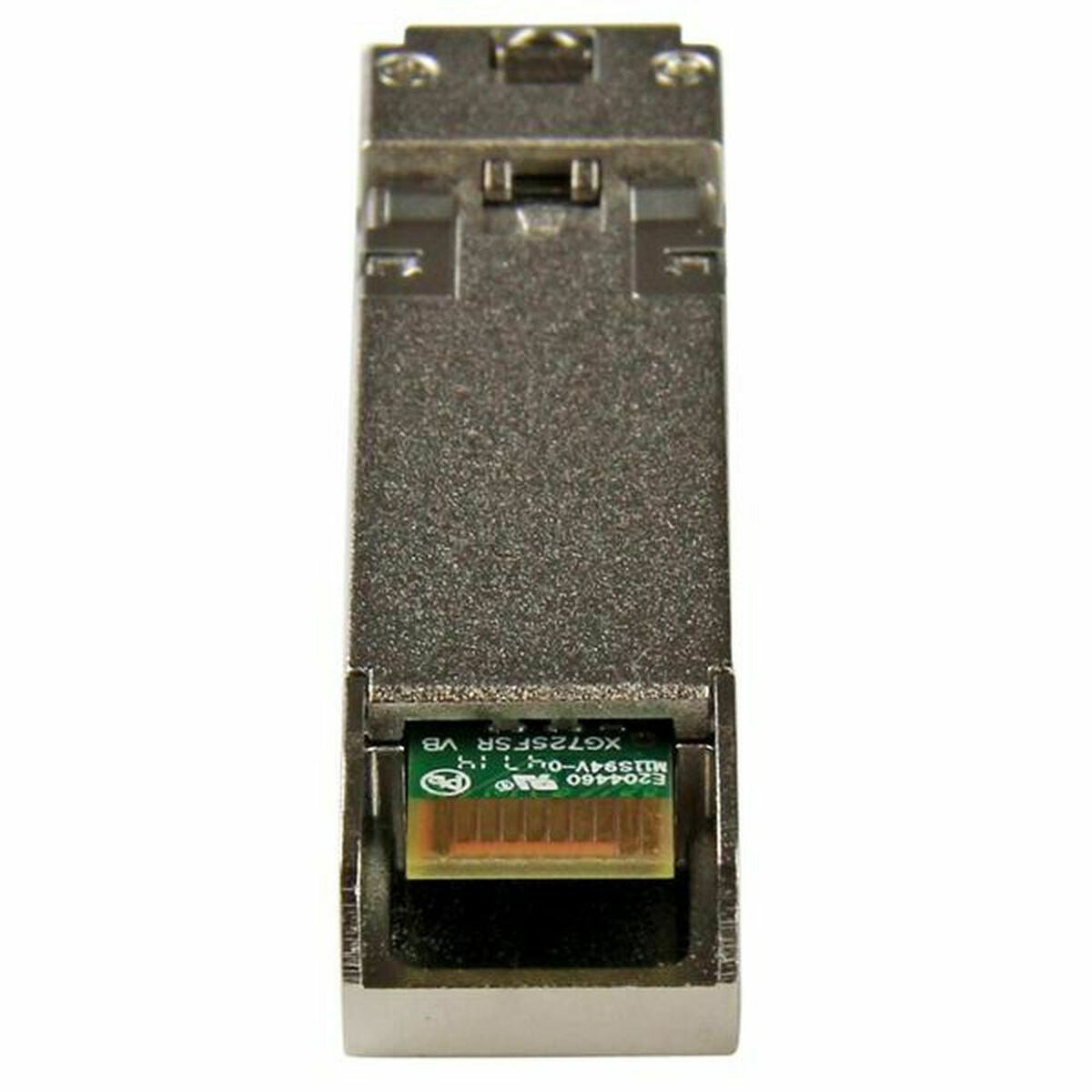

MultiMode SFP+ Fibre Module Startech MASFP10GBSR 850 nm

The Startech MASFP10GBSR SFP+ transceiver module is a multimode fiber SFP+ module designed to provide high-speed connectivity in networks requiring reliable and efficient 10 Gigabit per second communications. This transceiver is specially made to be compatible with Cisco Meraki MA-SFP-10GB-SR devices, facilitating integration into routers and switches from this brand. It features a data transfer rate of up to 10 Gbps and operates via multimode fiber with a range of up to 300 meters, making it ideal for data center and enterprise network connections where high bandwidth is required without compromising quality or speed. It uses a single LC connector and is built with durable materials such as aluminum with silver finishes, offering protection and a compact design measuring approximately 54 mm deep, 13.9 mm wide, and 12.6 mm high. Its 850 nm wavelength supports transmission over multimode fibers with emphasis on signal quality. Additionally, this module includes digital diagnostic monitoring (DDM) technology to monitor parameters like transmit power and temperature in real time, helping maintain stability and detect issues during use. Its low power consumption of only 1.2 watts contributes to energy efficiency in the systems where it is installed, and it has a mean time between failures (MTBF) exceeding 1.9 million hours, ensuring high reliability. It is certified with CE and RoHS standards, complying with international quality and safety regulations. It also supports hot-swapping, allowing installation and replacement without powering down or interrupting the network. Overall, this Startech SFP+ module is a technical solution focused on meeting the demands of 10 GbE optical communications in professional environments, combining compatibility, robustness, and stable performance for networks requiring maximum reliability and efficiency.

• Range: 300 m
• Wavelength: 850 nm
• Connections:
  • LC x 1
  • SFP+
  • LC
  • SATA
• Technology: 10GBase-SR
• Colour: Silver
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • Electric cable
• Type:
  • Fibre optic
  • MultiMode SFP+ Fibre Module
• Speed: 10000 Mbit/s
• Material: Aluminium
• Power: 1,2 w
• Certificate: CE - RoHS
• Working range for temperature: 0º / 70º
